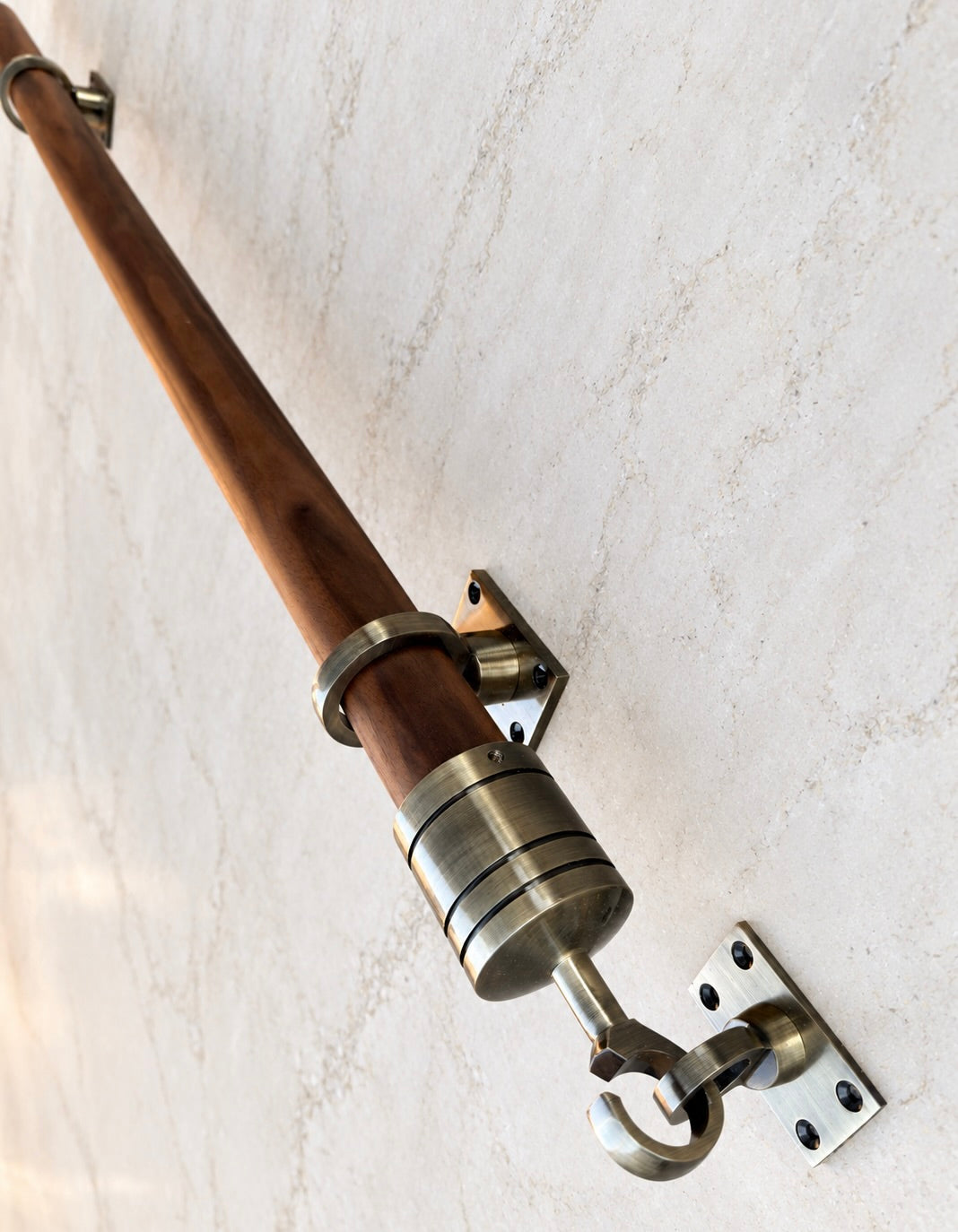

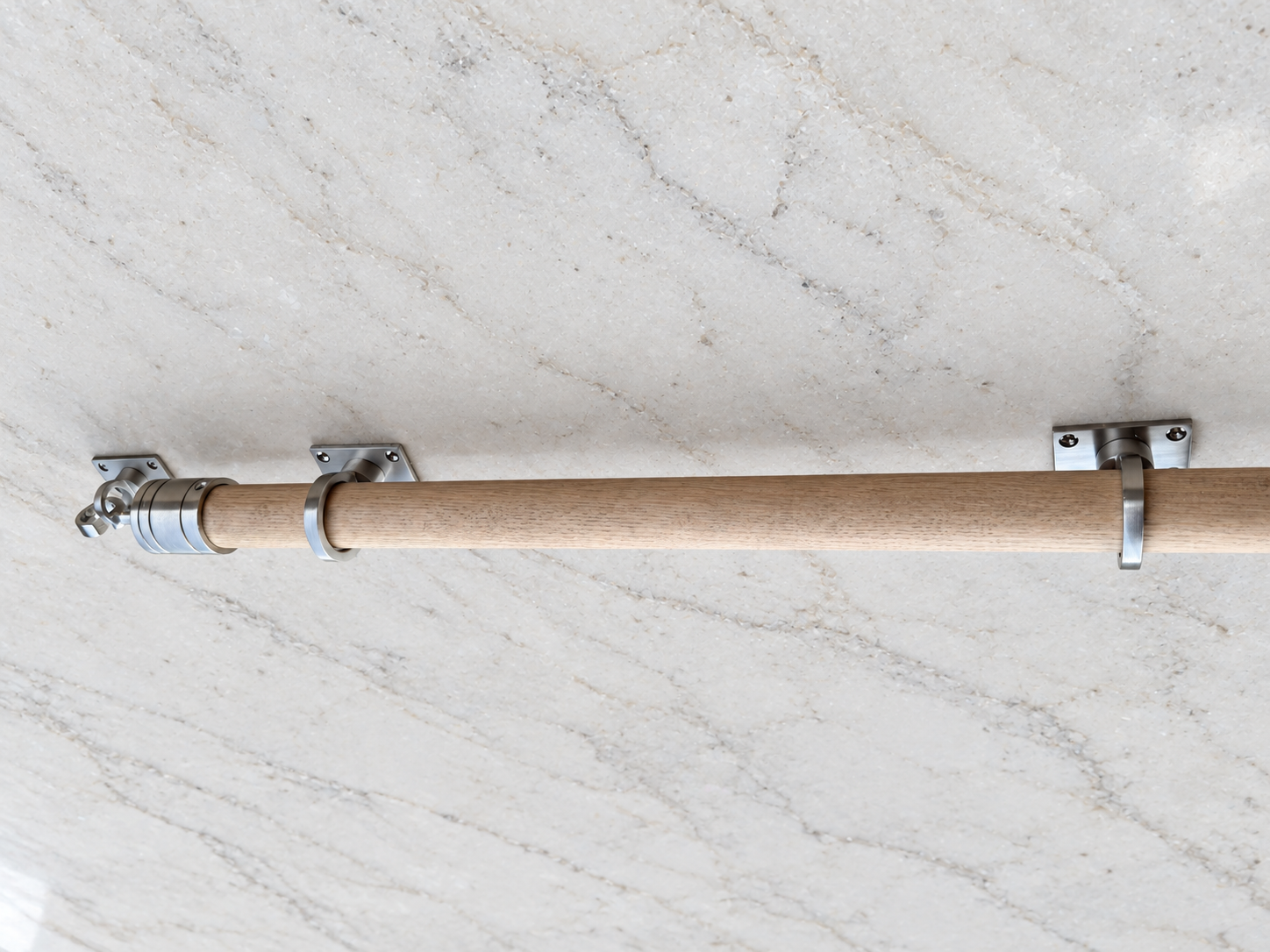

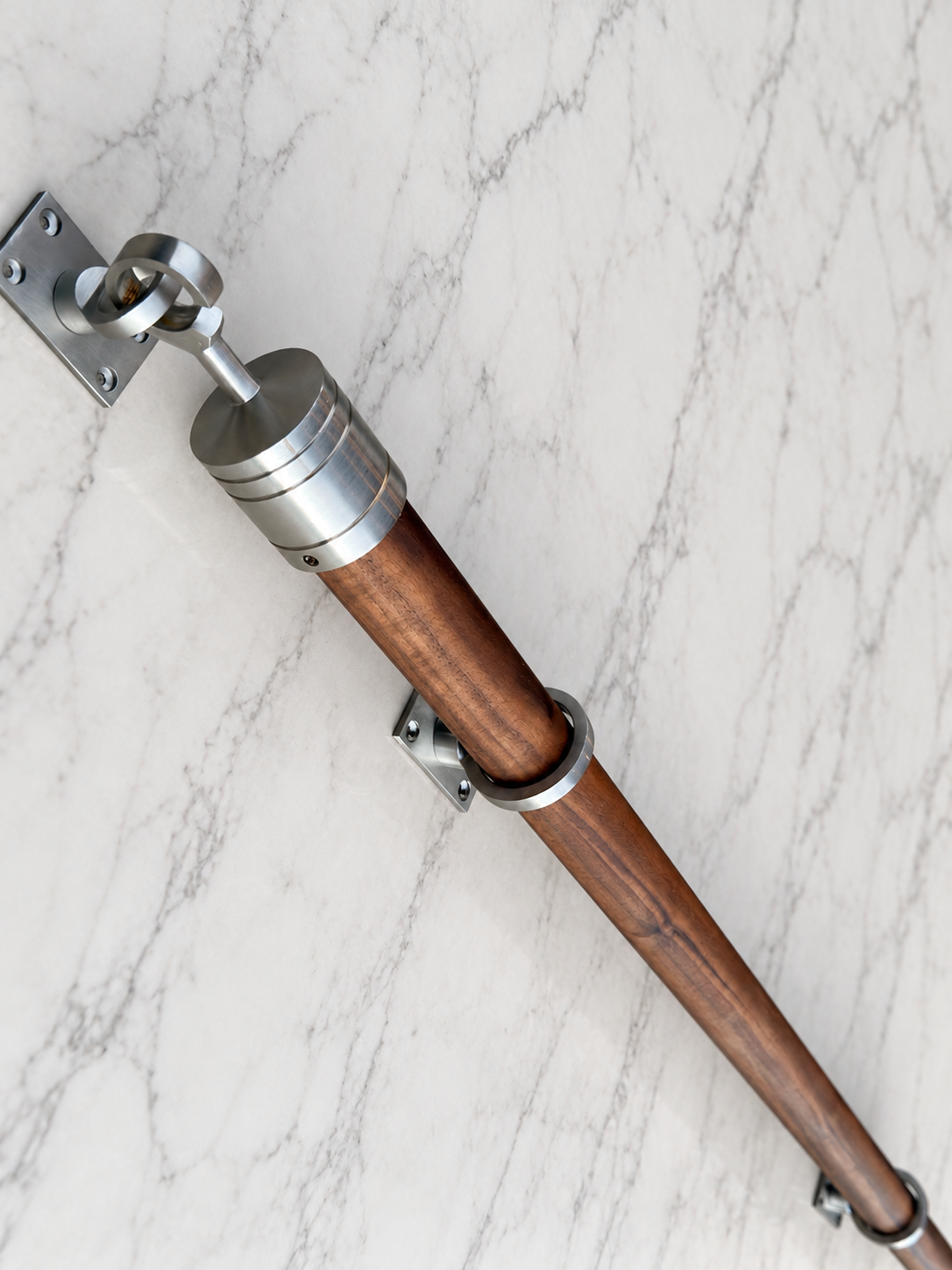

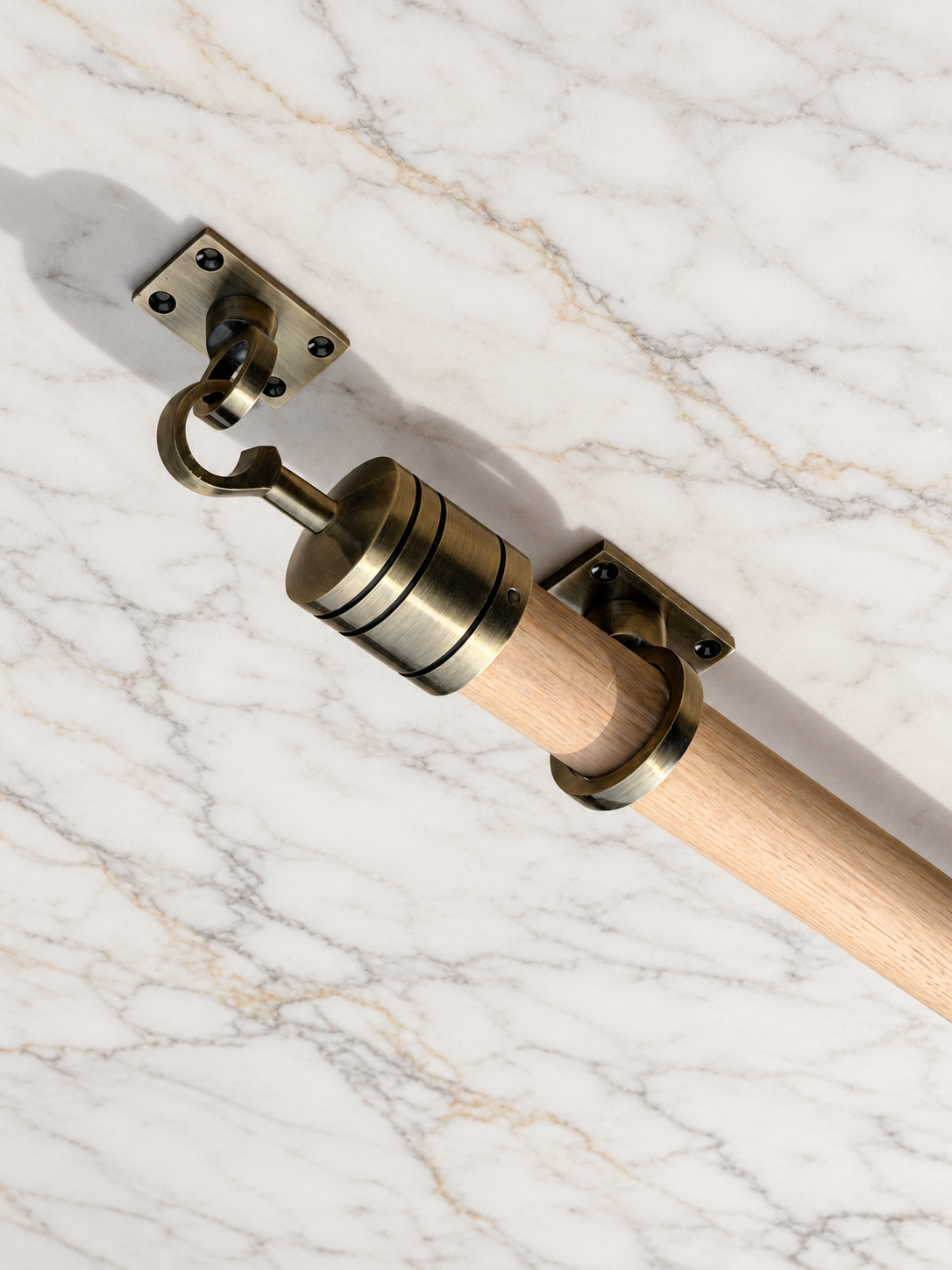

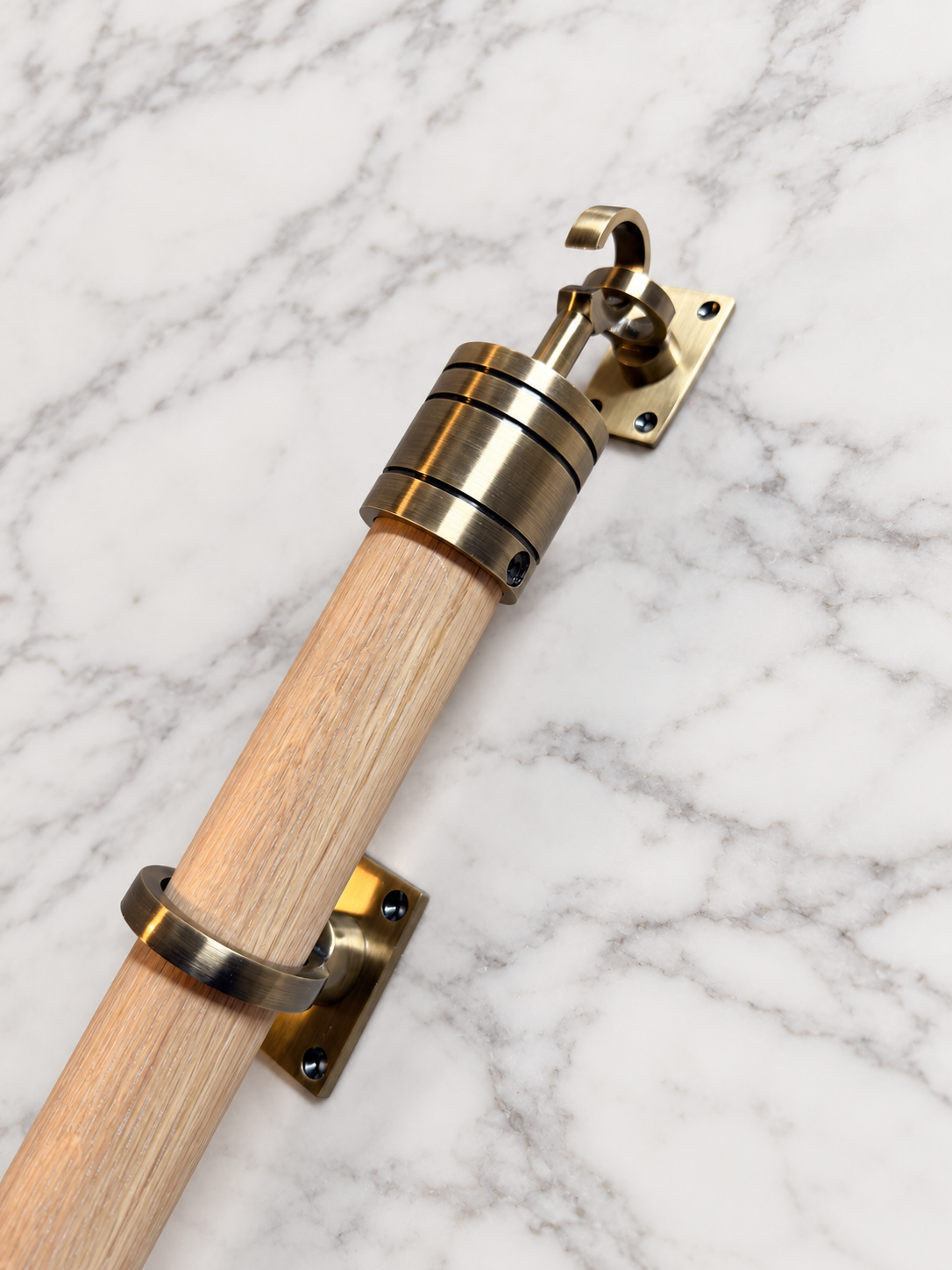

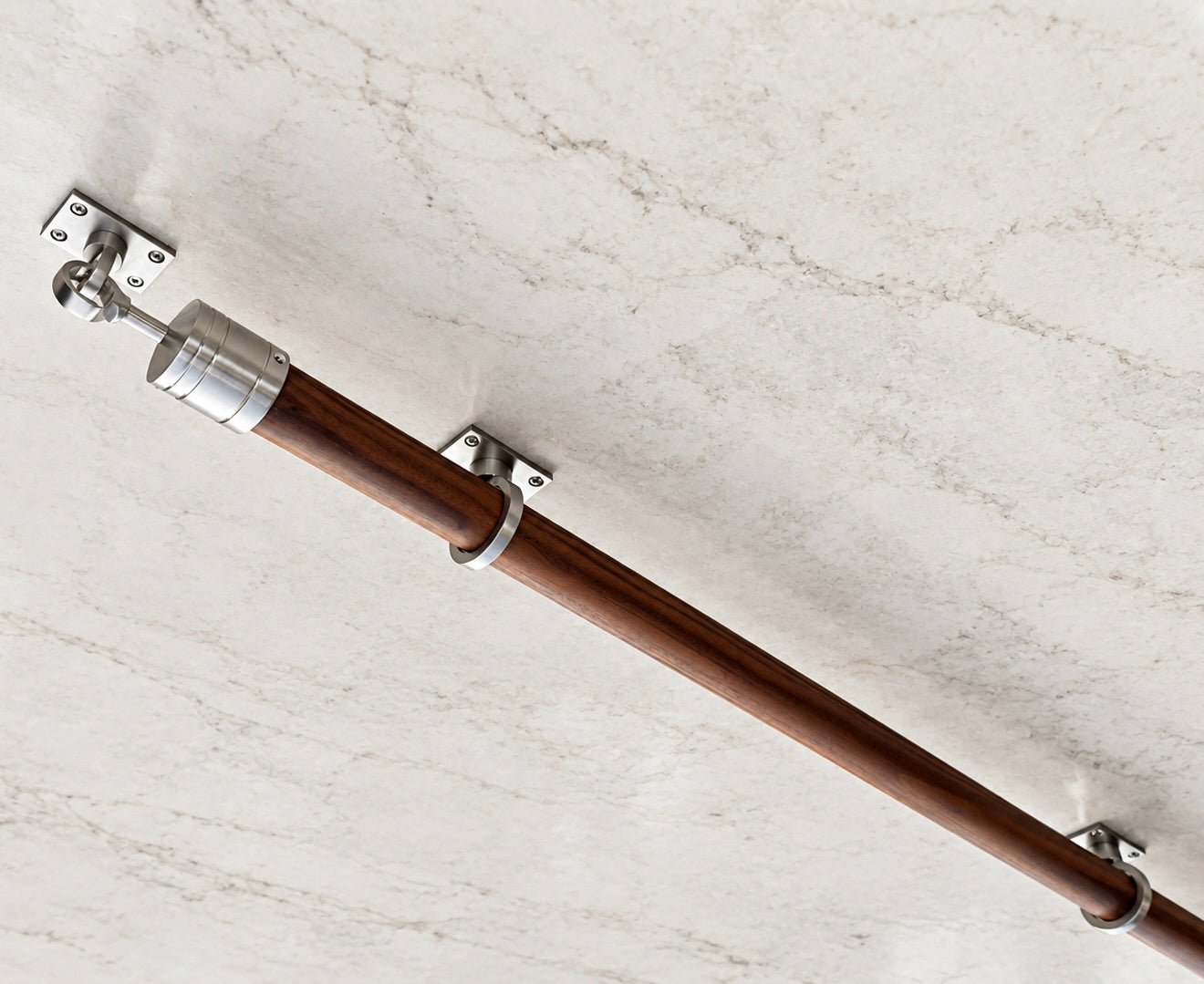

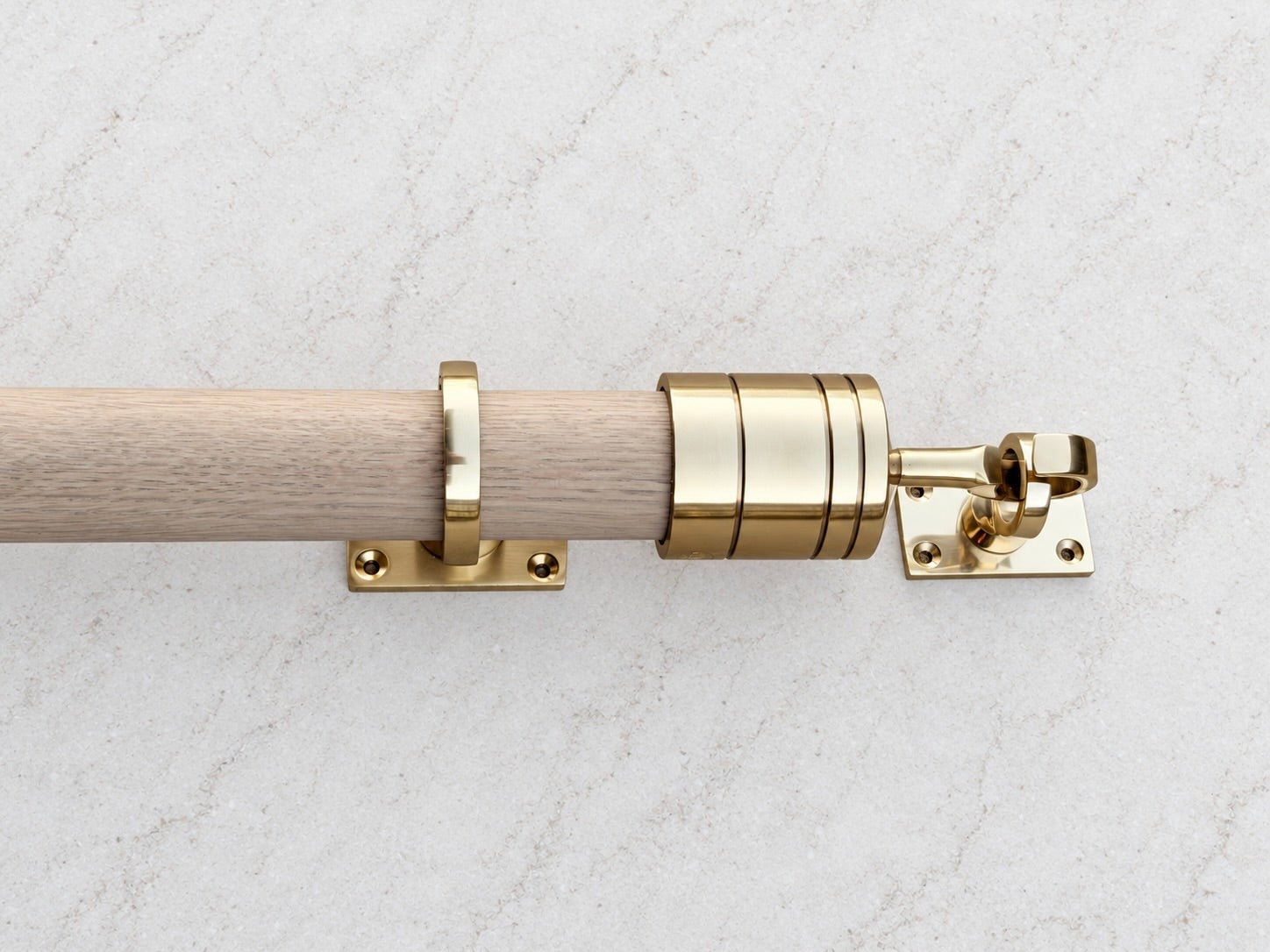

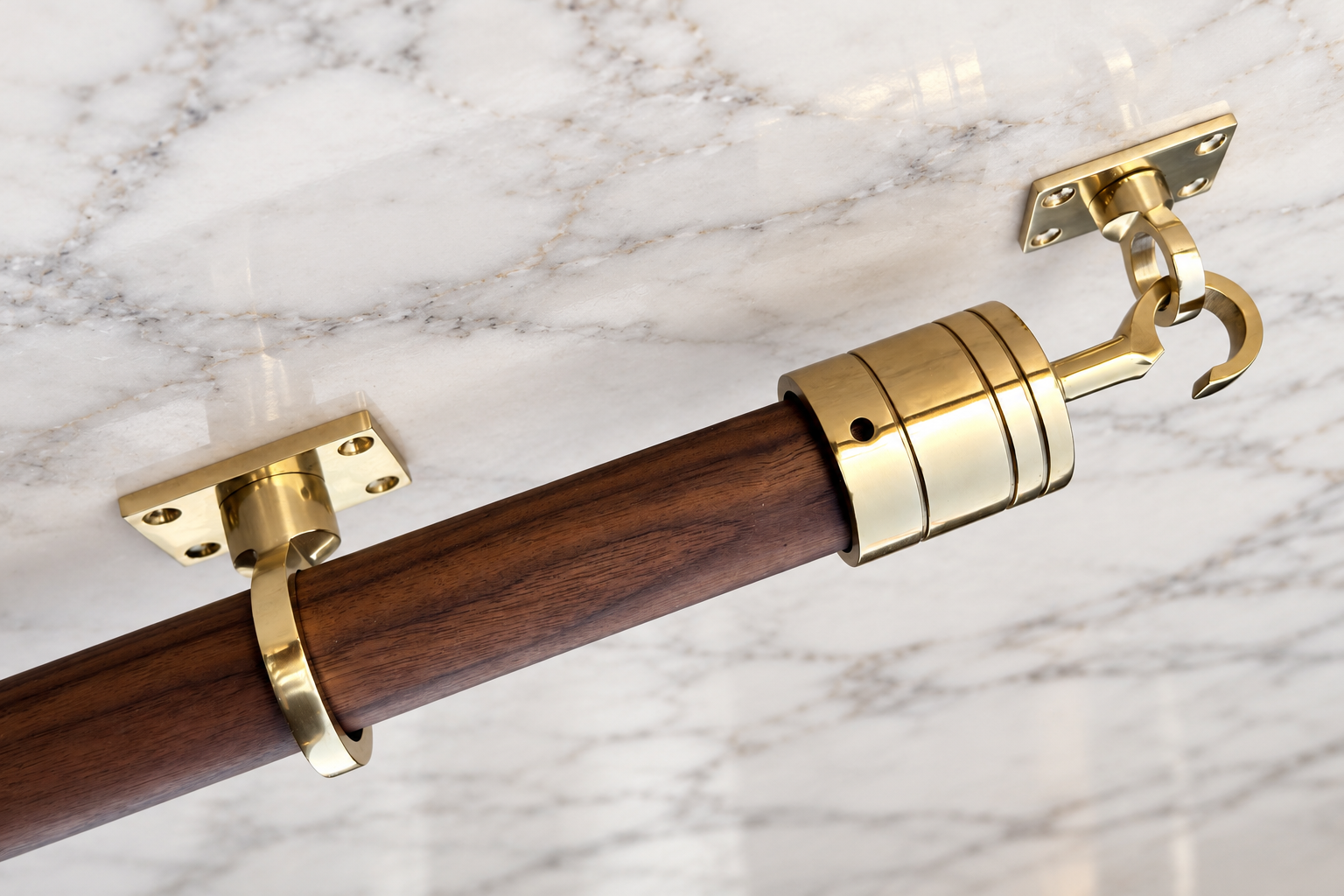

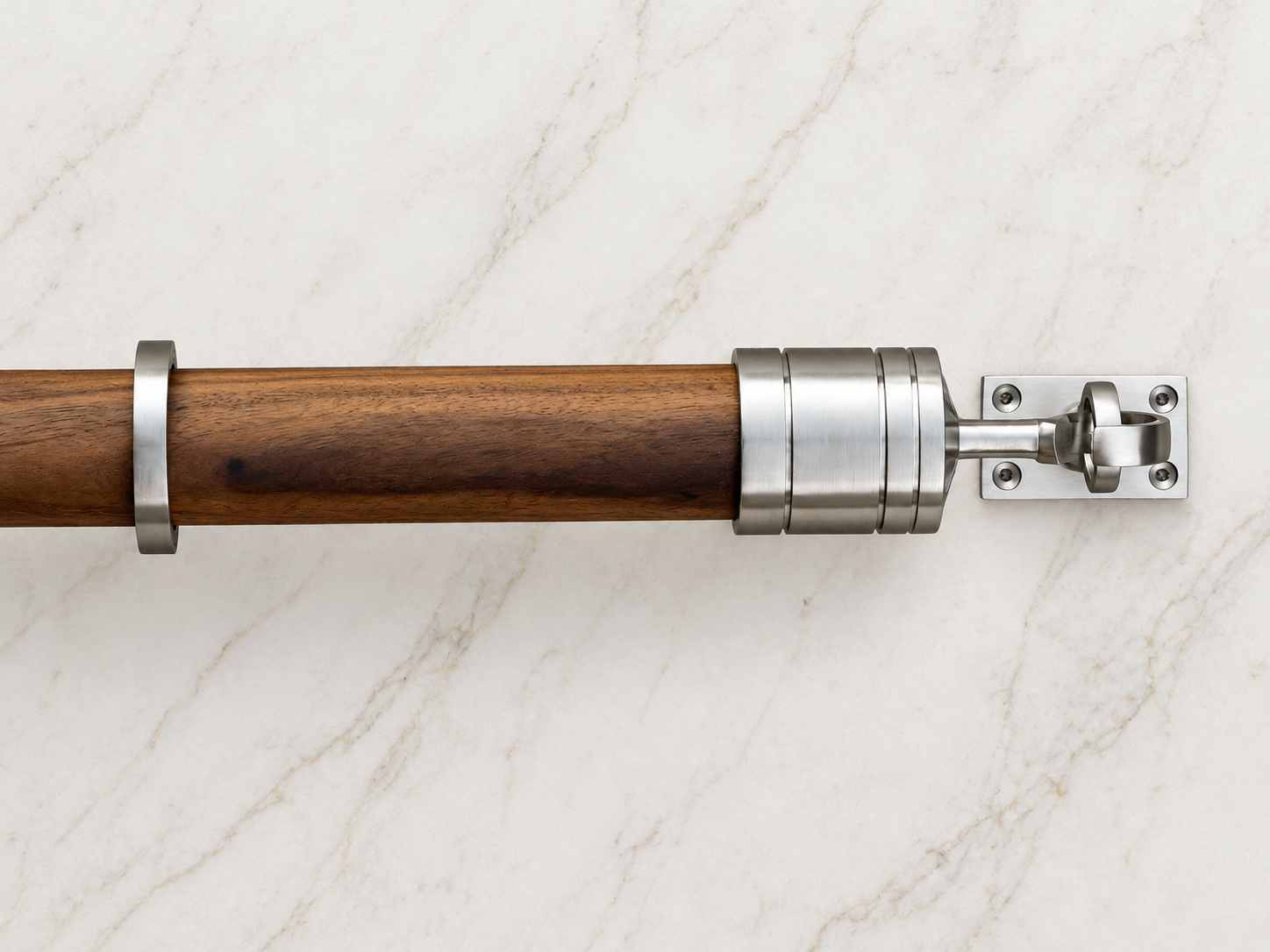

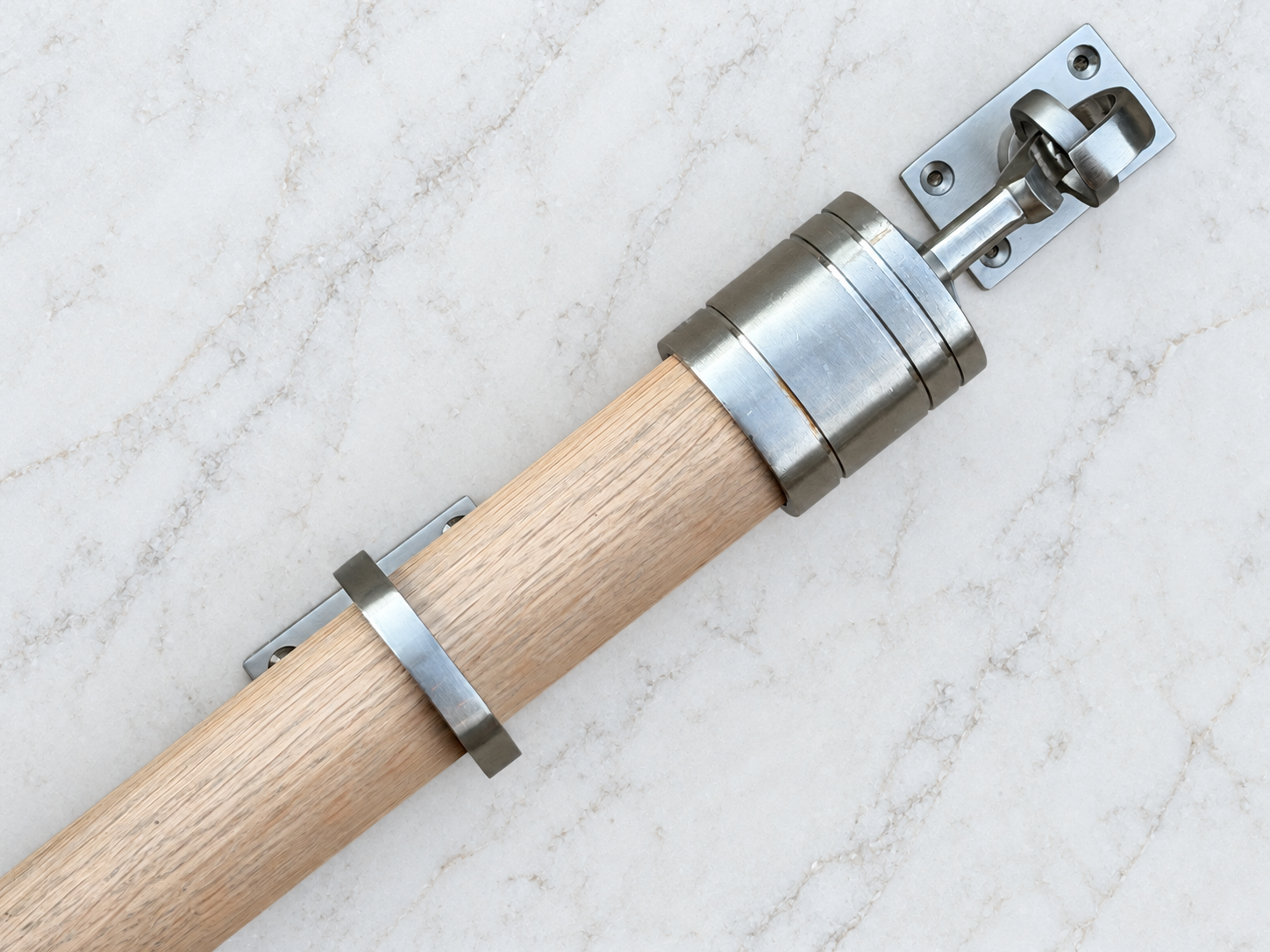

Low profile architectural handrail extends only 3" beyond wall surface.
Beautiful hardwoods and solid brass hardware in choice of finish combinations.
Details
Exclusive solid hardwood handrails in choice of finish paired with solid brass hardwood in choice of finish.
Handrail lengths up to 92" ship with wood rails as a single piece. Handrails over 92" will ship as connecting sections.
Brackets are spaced 3' apart.
Number of brackets per handrail lengths:
1 to 3 ft = 2 brackets
4 to 6 ft = 3 brackets
7 to 9 ft = 4 brackets
10 to 12 ft = 5 brackets
13 to 15 ft = 6 brackets
16 to 18 ft = 7 brackets
19 to 21 ft = 8 brackets
22 to 24 ft = 9 brackets
Brackets must install onto wall studs or bracing for optimal safety.
Dimensions
Low profile system. Extends only 3" from wall surface.
Space between wall and wood rail: 1.25"
Total handrail length is from tip to tip including wall hook and wall brackets.
Wall brackets are spaced 3' apart.
Wood railing: 1.5" diameter
Hook ends: 4.25"H x 1.875"Dia
Center brackets: 2.25x1.5" base 3" H
Lead times & Shipping
Made to order allow 6-8 weeks production time.
Systems ship UPS ground
